Anfrage: Standard-Formschultern Uni mit Rolle
Um eine Anfrage für eine Standard-Formschulter zu stellen, klicken Sie bitte in der entsprechenden Zeile auf die gewünschte Katalog-Nummer. Danach füllen Sie einfach das eingeblendete Formular aus oder klicken auf den Link, um Ihre Anfrage alternativ über Ihr eigenes E-Mail-Programm zu stellen.

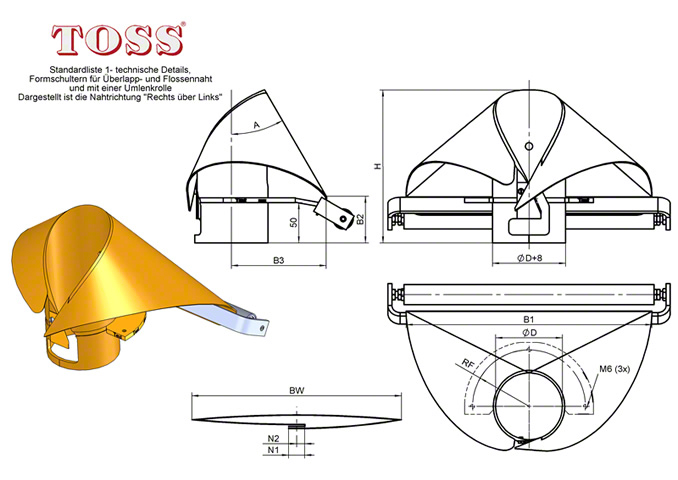

| Beutel- breite BW |
Einlauf- winkel A ( Grad ) |
Gesamt- höhe H |
Flansch-abstand von unten | Innen- durch- messer D |
Teilkreis- radius RF |
Flossen- naht N1 |
Exzentrizi- tät für Flossen -naht N2 |
B1 | B2 | B3 | Katalog-Nr. Rechts über Links |
Katalog-Nr. Links über Rechts |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 30 | 170 | 50 | 31,8 | 45 | 10 | 5 | 145 | 107,2 | 52,2 | TS1.050.3 | TS2.050.3 | |||||
| 55 | 30 | 170 | 50 | 35,0 | 50 | 10 | 5 | 155 | 102,9 | 56,3 | TS1.055.3 | TS2.055.3 | |||||
| 60 | 30 | 170 | 50 | 38,2 | 50 | 10 | 5 | 165 | 98,6 | 60,3 | TS1.060.3 | TS2.060.3 | |||||
| 65 | 30 | 170 | 50 | 41,4 | 50 | 10 | 5 | 175 | 94,2 | 64,4 | TS1.065.3 | TS2.065.3 | |||||
| 70 | 30 | 170 | 50 | 44,6 | 55 | 10 | 5 | 185 | 89,9 | 68,5 | TS1.070.3 | TS2.070.3 | |||||
| 75 | 30 | 170 | 50 | 47,7 | 55 | 10 | 5 | 195 | 85,6 | 72,6 | TS1.075.3 | TS2.075.3 | |||||
| 80 | 30 | 170 | 50 | 50,9 | 55 | 10 | 5 | 205 | 81,2 | 76,7 | TS1.080.3 | TS2.080.3 | |||||
| 85 | 30 | 170 | 50 | 54,1 | 60 | 10 | 5 | 215 | 76,9 | 80,8 | TS1.085.3 | TS2.085.3 | |||||
| 90 | 30 | 170 | 50 | 57,3 | 60 | 10 | 5 | 225 | 72,6 | 84,9 | TS1.090.3 | TS2.090.3 | |||||
| 95 | 30 | 170 | 50 | 60,5 | 60 | 10 | 5 | 235 | 68,2 | 89 | TS1.095.3 | TS2.095.3 | |||||
| 100 | 30 | 170 | 50 | 63,7 | 65 | 15 | 5 | 255 | 59,6 | 95,6 | TS1.100.3 | TS2.100.3 | |||||
| 105 | 30 | 170 | 50 | 66,8 | 65 | 15 | 5 | 265 | 55,3 | 99,7 | TS1.105.3 | TS2.105.3 | |||||
| 110 | 30 | 175 | 50 | 70,0 | 65 | 15 | 5 | 275 | 55,9 | 103,8 | TS1.110.3 | TS2.110.3 | |||||
| 115 | 30 | 175 | 50 | 73,2 | 70 | 15 | 5 | 285 | 51,6 | 107,9 | TS1.115.3 | TS2.115.3 | |||||
| 120 | 30 | 180 | 50 | 76,4 | 70 | 15 | 5 | 295 | 52,3 | 111,9 | TS1.120.3 | TS2.120.3 | |||||
| 125 | 30 | 185 | 50 | 79,6 | 70 | 15 | 5 | 305 | 52,9 | 116 | TS1.125.3 | TS2.125.3 | |||||
| 130 | 30 | 190 | 50 | 82,8 | 70 | 15 | 5 | 315 | 53,6 | 120,1 | TS1.130.3 | TS2.130.3 | |||||
| 135 | 30 | 195 | 50 | 85,9 | 75 | 15 | 5 | 325 | 54,3 | 124,2 | TS1.135.3 | TS2.135.3 | |||||
| 140 | 30 | 200 | 50 | 89,1 | 75 | 15 | 5 | 335 | 54,9 | 128,3 | TS1.140.3 | TS2.140.3 | |||||
| 145 | 30 | 205 | 50 | 92,3 | 75 | 15 | 5 | 345 | 55,6 | 132,4 | TS1.145.3 | TS2.145.3 | |||||
| 150 | 30 | 210 | 50 | 95,5 | 80 | 15 | 5 | 355 | 56,3 | 136,5 | TS1.150.3 | TS2.150.3 | |||||
| 155 | 30 | 215 | 50 | 98,7 | 80 | 15 | 5 | 365 | 57 | 140,6 | TS1.155.3 | TS2.155.3 | |||||
| 160 | 30 | 220 | 50 | 101,9 | 80 | 15 | 5 | 375 | 57,6 | 144,7 | TS1.160.3 | TS2.160.3 | |||||
| 165 | 30 | 220 | 50 | 105,0 | 85 | 15 | 5 | 385 | 53,3 | 148,8 | TS1.165.3 | TS2.165.3 | |||||
| 170 | 30 | 225 | 50 | 108,2 | 85 | 15 | 5 | 395 | 54 | 152,9 | TS1.170.3 | TS2.170.3 | |||||
| 175 | 30 | 230 | 50 | 111,4 | 85 | 15 | 5 | 405 | 54,6 | 157 | TS1.175.3 | TS2.175.3 | |||||
| 180 | 30 | 235 | 50 | 114,6 | 90 | 15 | 5 | 415 | 55,3 | 161 | TS1.180.3 | TS2.180.3 | |||||
| 185 | 30 | 240 | 50 | 117,8 | 90 | 15 | 5 | 425 | 56 | 165,1 | TS1.185.3 | TS2.185.3 | |||||
| 190 | 30 | 245 | 50 | 121,0 | 90 | 15 | 5 | 435 | 56,6 | 169,2 | TS1.190.3 | TS2.190.3 | |||||
| 195 | 30 | 250 | 50 | 124,1 | 95 | 15 | 5 | 445 | 57,3 | 173,3 | TS1.195.3 | TS2.195.3 | |||||
| 200 | 30 | 255 | 50 | 127,3 | 95 | 15 | 5 | 455 | 58 | 177,4 | TS1.300.3 | TS2.300.3 | |||||
| 205 | 25 | 245 | 50 | 130,5 | 95 | 15 | 5 | 465 | 34,3 | 163,5 | TS1.205.3 | TS2.205.3 | |||||
| 210 | 25 | 250 | 50 | 133,7 | 100 | 15 | 5 | 475 | 34,8 | 167,2 | TS1.210.3 | TS2.210.3 | |||||
| 215 | 25 | 255 | 50 | 136,9 | 100 | 15 | 5 | 485 | 35,2 | 170,9 | TS1.215.3 | TS2.215.3 | |||||
| 220 | 25 | 255 | 50 | 140,1 | 100 | 15 | 5 | 495 | 30,7 | 174,6 | TS1.220.3 | TS2.220.3 | |||||
| 225 | 25 | 260 | 50 | 143,2 | 105 | 15 | 5 | 505 | 31,2 | 178,3 | TS1.225.3 | TS2.225.3 | |||||
| 230 | 25 | 265 | 50 | 146,4 | 105 | 15 | 5 | 515 | 31,6 | 182 | TS1.230.3 | TS2.230.3 | |||||
| 235 | 25 | 270 | 50 | 149,6 | 105 | 15 | 5 | 525 | 32,1 | 185,7 | TS1.235.3 | TS2.235.3 | |||||
| 240 | 25 | 275 | 50 | 152,8 | 105 | 15 | 5 | 535 | 32,6 | 189,4 | TS1.240.3 | TS2.240.3 | |||||
| 245 | 25 | 280 | 50 | 156,0 | 110 | 15 | 5 | 545 | 33 | 193,1 | TS1.245.3 | TS2.245.3 | |||||
| 250 | 25 | 280 | 50 | 159,2 | 110 | 15 | 5 | 555 | 28,5 | 196,9 | TS1.250.3 | TS2.250.3 | |||||
| 255 | 25 | 285 | 50 | 162,3 | 110 | 15 | 5 | 565 | 29 | 200,6 | TS1.255.3 | TS2.255.3 | |||||
| 260 | 25 | 290 | 50 | 165,5 | 115 | 15 | 5 | 575 | 29,4 | 204,3 | TS1.260.3 | TS2.260.3 | |||||
| 265 | 25 | 295 | 50 | 168,7 | 115 | 15 | 5 | 585 | 29,9 | 208 | TS1.265.3 | TS2.265.3 | |||||
| 270 | 25 | 300 | 50 | 171,9 | 115 | 15 | 5 | 595 | 30,4 | 211,7 | TS1.270.3 | TS2.270.3 | |||||
| 275 | 25 | 305 | 50 | 175,1 | 120 | 15 | 5 | 605 | 30,8 | 215,4 | TS1.275.3 | TS2.275.3 | |||||
| 280 | 25 | 305 | 50 | 178,3 | 120 | 15 | 5 | 615 | 26,3 | 219,1 | TS1.280.3 | TS2.280.3 | |||||
| 285 | 25 | 310 | 50 | 181,4 | 120 | 15 | 5 | 625 | 26,8 | 222,8 | TS1.285.3 | TS2.285.3 | |||||
| 290 | 25 | 315 | 50 | 184,6 | 125 | 15 | 5 | 635 | 27,2 | 226,5 | TS1.290.3 | TS2.290.3 | |||||
| 295 | 25 | 320 | 50 | 187,8 | 125 | 15 | 5 | 645 | 27,7 | 230,2 | TS1.295.3 | TS2.295.3 | |||||
| 300 | 25 | 325 | 50 | 191,0 | 125 | 15 | 5 | 655 | 28,2 | 233,9 | TS1.300.3 | TS2.300.3 | |||||
| Auswahl ändern | |||||||||||||||||
Bitte wählen Sie eine Katalog-Nummer aus, um eine Anfrage für dieses Produkt zu stellen:
