Pneumatic actuator type C

Recirculating Ball Guide double-acting Ø10/16/20/25/32/40mm Stroke 25-200mm

Pneumatic actuator type C

Information and technical data

Compact pneumatic actuator with integrated, backlash-free recirculation ball guide. These pneumatic cylinders are equipped with integrated sensor grooves for electrical/electronic proximity switches. The cylinders can be supplied with end position cushioning with external and adjustable limit stops or small hydraulic shock-absorbers (see accessories).

Examples

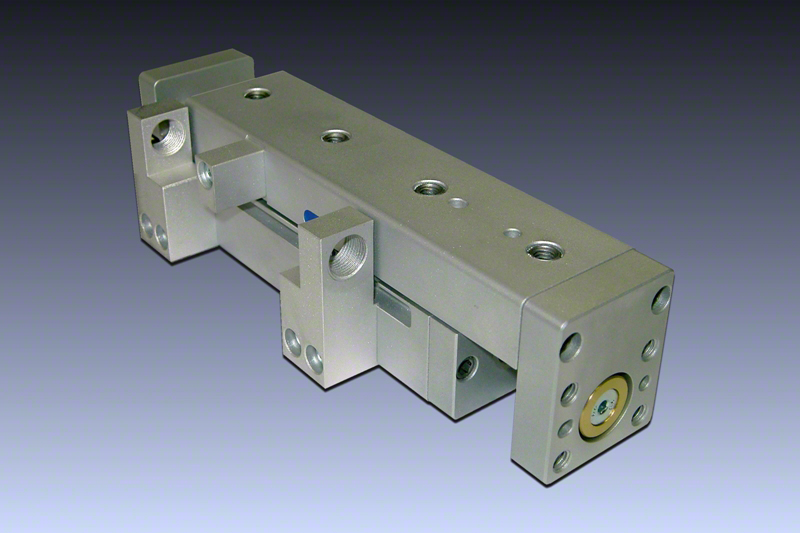

Type C with supports (AR) for hydraulic shock absorbers or mechanical end stops

Type C with supports (AR) for hydraulic shock absorbers or mechanical end stops

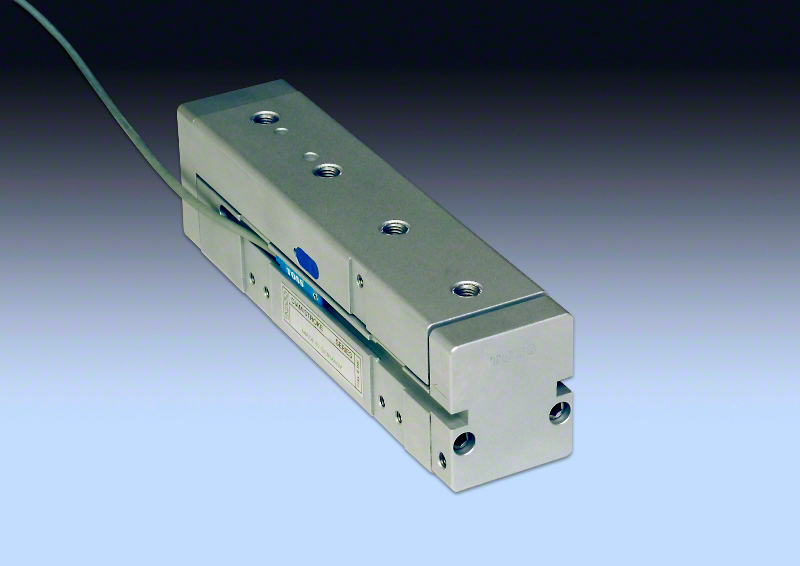

Type C with proximity switch (TSN)

Type C with proximity switch (TSN)

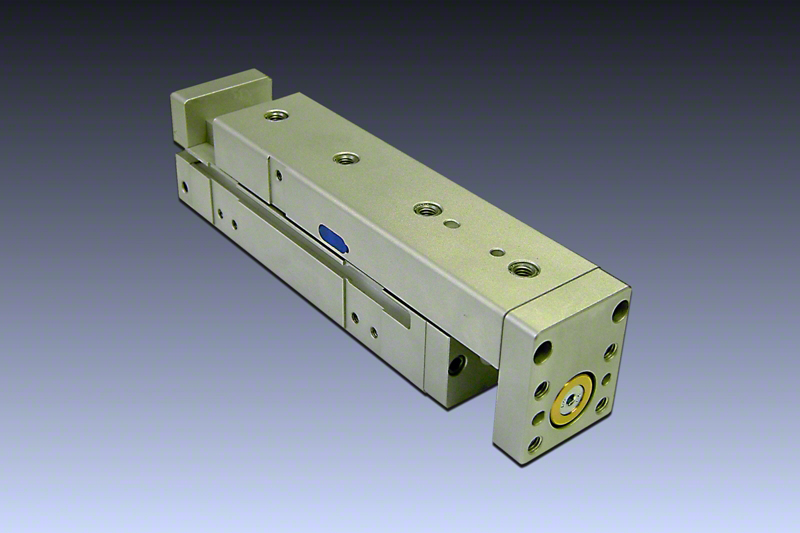

Type C - Standard

Type C - Standard

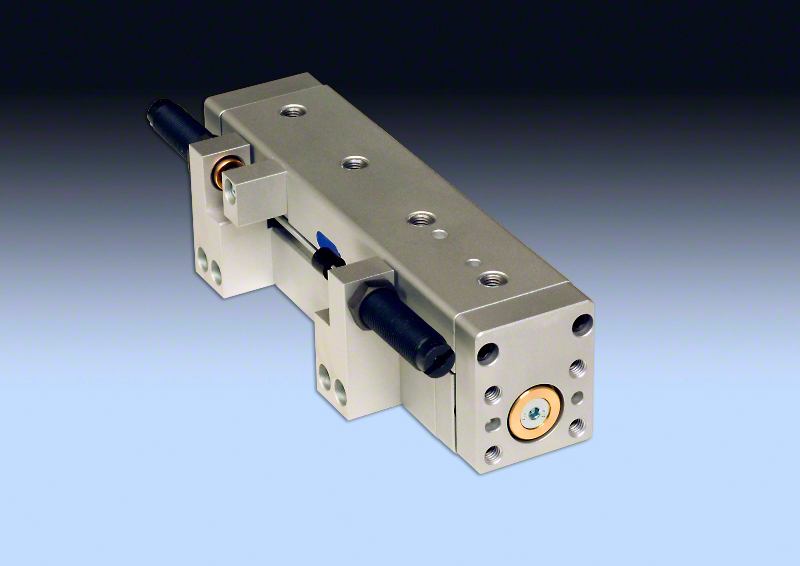

Type C with supports (AR) and mechanical end stops

Type C with supports (AR) and mechanical end stops
Type C with supports (AR) and hydraulic shock absorbers.

Type C with supports (AR) and hydraulic shock absorbers.

Product Configuration

Based on the selected product configuration, you can view our current list price or choose 2D and 3D models for download.
